Sequencomat V3

SequencomatV3 is an 8 track 16 step midi stepsequencer in Max/MSP with a touch control surface.
Original created for (now discontinued) Jazzmutant Lemur, also working with the new Lemur for Ipad by Liine.
(But it is not a standalone App, because it needs a computer running the maxpatch.)

The main concept of Sequencomat is based on classic hardware stepsequencers, with a special ergonomic surface, designed for 2 handed touchscreen control. This enables fast and direct acess to all main functions during playback. It is thought for live jamming and studio sessions.

Each track of Sequencomat has independent Midichannel, time divisions, playdirection and tracklength, which allows polyrhythmic patterns. Stepvalues for octave, note, velocity, length, delay, control change and propability on each track. All stepvalues with a range for the output and randomswitches, which can bring the machine somehow to life...

As all classical stepsequencer, SequencomatV3 does not make any sounds by itself, but it gives you a wide variety in triggering your synths and drummachines, may it be hard- or software.......

This manual is also available as pdf: http://www.tonvibration.de/SequencomatV34_manual.pdf
The template is made by Matthias Wille for music-interface.com / contact: mat@music-interface.com

Specification at a glance:

Overview:

How does it work?

Sequencomat consists of 2 parts:

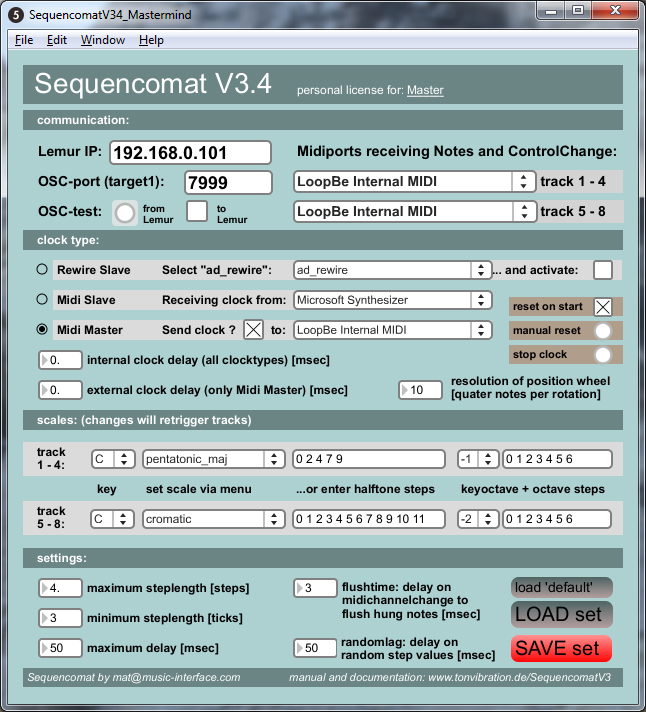

The heart of the sequencer is programmed in max/msp and works on your computer (Mac or PC) using cycling74s free max runtime. The other part is a Lemur control module which runs within any Lemurproject (on Jazzmutants original hardware Lemur or on Liines iPad App for Lemur).

Both parts are connected with a bidirectional OSC connection:
entering values into the maxpatch is done by pushing controlls on the Lemur and visual feedback (e.g. during pattern change) is given from max to Lemur.
It is important to notice that the Lemurtemplate itself does not send any Midi - all Midi handling is done by the maxpatch, which can send to all Midiports installed on your computer.

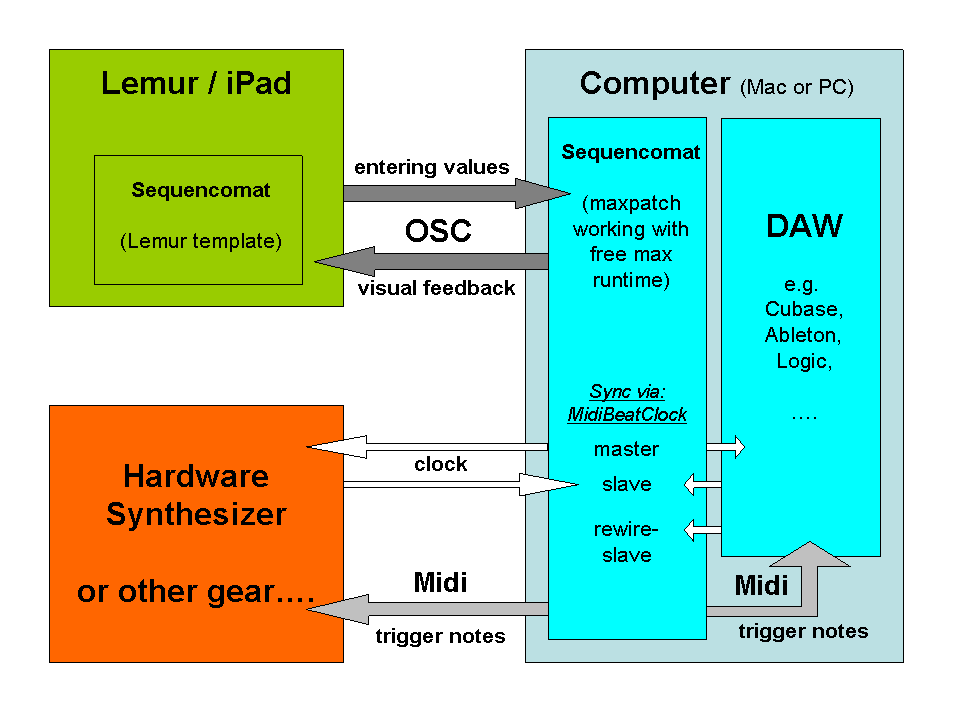

Sequencomat setup overview

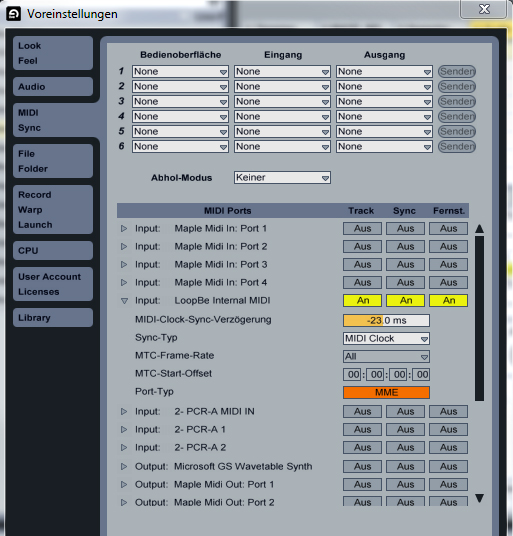

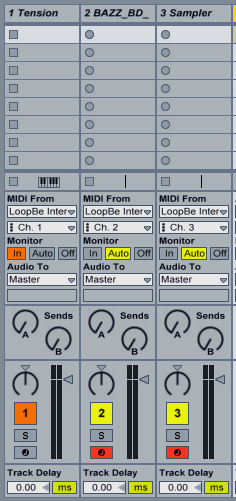

With "virtual Midicables" (e.g. Loopbe on PC or IACports on Mac) you can route that Midi into your Digital Audio Worksation (DAW) or other software. If you got a Midi hardware interface on your computer, you can also send Midi out to hardware synthesizers or other hardware gear. In case you want to trigger several Midiports, you can use a standard Midi patchbay to distribute the signal or split the Midiport for track 1-4 and 5-8 within the maxpatch.

Synchronisation can be done in 3 ways:

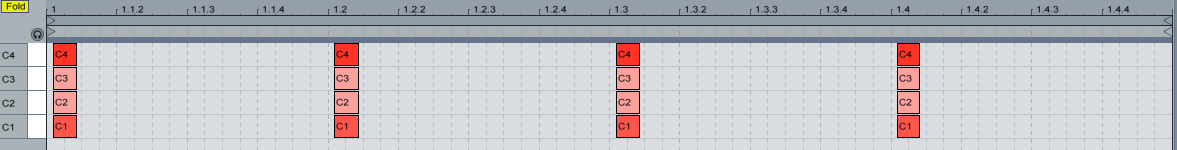

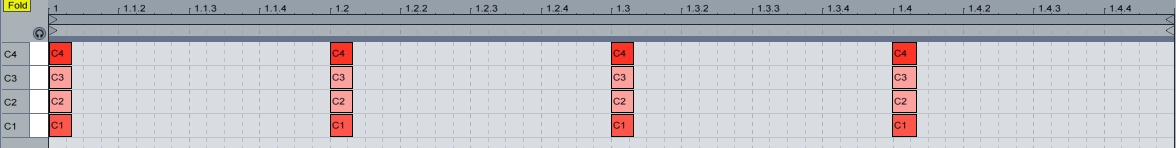

Midimaster and -slave use a MidiBeatClock (MBC). This is a simple clock type that works with most gear
including old hardware.
Midi Time Code (MTC) is not installed.

To make it clear: Sequencomat is not an App!

It is a software that needs an App (Liines Lemur App) or an original Jazzmutant Lemur to communicate with other soft- and hardware. It is not thought for triggering other Apps on the iPad. Although you can route the Midisignal from your computer back into the iPad and therefore trigger Apps, I would suggest to use another sequencer if your main goal is making music with Apps.

In case your main goal is to cut the computer within your setup and trigger hardware synthesizer directly with an iPad,
Sequencomat is also not the right choice. You need a computer to run the maxpatch.
This can be a rather old computer and you can cut the DAW or other software from your setup,
triggering hardware directly with Sequencomat, but a computer is still necessary.

The setup Sequencomat is made for, is if you got a computer with some software plus hardware gear and you want to trigger all of them with a touchscreen stepsequencer (...the most usual setup for electronic musicans these days, I think). In this case Sequencomat v3 is still the most elaborated touchscreen stepsequencing solution available on this planet. :o I wonder myself, but at the moment [Feb 2013] Apps can hardly do half of the stuff Sequencomat offers....


History and version guide:

"Sequencomat" is the name of a whole series of stepsequencers I have made for the Lemur since 2009.
In common the higher the version the more details you can control. V3 is clearly my flagship
(for details see FAQ).
There is a free lite version, which covers about 60% of functionality and a paid full version, which match this manual. The table below compare both versions:


Sequencomat V3 lite

free temlate
Sequencomat V3.4 full version

paid template
SequencomatV3_lite Sequencomat V3.3 full version
- 6 tracks / 16 steps each
-
50 patterns
- 3 clock options (Midimaster, Midislave, Rewireslave)
- independent trackvalues for
timing
play direction
midichannel
steprange
startpoint
- stepvalues for
octave
note
velocity
length
- global swing function
- 8 octaves, C cromatic scale
- rollpad
- set and patterns saved via max
- 8 tracks / 16 steps each
-
100 patterns
- 3 clock options (Midimaster, Midislave, Rewireslave)
- independent trackvalues for
timing
play direction
midichannel
steprange
startpoint
- stepvalues for
octave
note
velocity
length
swing
step propability
control change / program change
- rollpad
- set and patterns saved via max

- defineable scales and octaves (major, minor, cromatic, custom scales...) for pitch; independent defineable for track 1-4 and 5-8

- all stepvalues with switchable random function!
(this feature is quite unique,haven´t seen it on other stepsequencers yet...)

- auto pattern chain: combine patterns in a timeline

- auto save: automatic saving before patternjump, in auto pattern chain or manual mode

- exlude function for trackloading

- 20 color templates
including 4 user slot

- runs parallel with lite version
(= 14 tracks at all!)

....and much more

Sequencomat V3lite is available for free:

Sequencomat V3lite for Jazzmutant Lemur
discuss @Jazzmutant forum

Sequencomat V3lite for Liines iPad Lemur
discuss @ Liine forum


Before ordering the full version of this Sequencer,
always try the free lite version first!

...if you enjoy it for a while and want more...

drop me a short mail:

mat@music-interface.com


Music-interface is a small company. I care about my users. If you got any question about your setup, contact me. :)

Ordering:

If you have played for a while the free lite version and want to order the full Sequencomat v3.4, please drop me a mail: mat@music-interface.com Describe your setup in short words and experience with lite version. I will answer within the next days and you will get a paypal request. After payment I send the Maxpatch and the Lemurtemplate via email. (Using paypal is possible without an account, all credit cards are accepted)

The regular price for this sequencer is 99,- Euro.
I know there is a lot of discussion about software pricing. But I am a bit tired of it....
Take into account that it took years to develop this sequencer, including documentation and ongoing support.
I give a lite version for free, please don´t ask me for a price drop on full version. (imho: App prices will not work for a Midi stepsequencer, because it is a nische product with only a few sells and support will not cover those prices as well.)

You can get 50,- Euro payback, if you shoot a short video showing SequencomatV3 in action which I can post on youtube. This video should be no longer than 3 minutes and delivered within the first 20 days after receiving the patch. (Due to experience I only give payback, no credit.)

Full license users of SequencomatV3 will get free updates, whenever I make one.
SequencomatV3 is sold as "working beta". Although I made a lot of tests, I can not guaranty that it works as described under all circumstances - because possible setups are to complex and differ to much. Saying this, the free lite version of Sequencomat can be a good indicator if it fits to your setup. (All critical elements, including the clock, are the same on lite and full version).

Feedback of users:

Wayat (messageismusic):
"What an amazing work!!! I really love it! Particularly automatic changing pattern,
multitrack edit, max patch save/load function, step velocity, and physics..."

Daniel Troberg (
elektron.se ):
"I really really like your sequencer!!! its great!"
"If you have a lemur and want to have the best stepsequencer for it, you should look no further, the sequencomat is the bomb!"

Demonstration videos:

You will find a lot of videos on my youtube channel: http://de.youtube.com/user/tonvibration
Below I picked some of them and described their content a bit.

For some music demonstrations visit my soundcloud site (especially „pattern“ series): https://soundcloud.com/tonvibration

Version: 3.3

(full and lite parallel on same iPad)

This rather short demo video shows full and lite version of Sequencomat running on the same iPad. Connection was done through my Wlan router, but works fine as demonstrated.

Version: 3.4

Showing new features in 3.4

Program change as control change message send stepwise and tight on step.

New way to make patternchains and blinking feedback.

Version: 3.0 (beta)

This video introduce the main functions of SequencomatV3.

Track and step values, channel change, multiple editing, control change variation and triggering on the rollpad are shown.

The video was shot with an early beta version, some functions are already expanded (e.g. more octaves). Patterns and automatic pattern chaining was not integrated in this early version.
Version: 3.2

Video showing the new functions in V3.2

steppropability, 8CCs attached to track, random stepvalues for velocity, length and CC
Version: 3.3

Video showing new functions in V3.3  and new color templates for controls!

...like predefined scales and octaves with dependent grid on controls, random on note, step propability, autosave + pattern chain  (allows to live edit up to 160 steps), new colors for controls and appearance, new rotary contols for bpm.
all live recorded (midi and audio) and synced later to video for better sound quality.
using sequencomat V3.3 as midi master clock
Version: lite (here on Ipad)

Video showing the free lite version of Sequencomat.

Here presented on Ipad, via the new LemurforIpad-App by Liine....but SequencomatV3 lite is also available for hardware Lemur!

To compare the free lite and the full version of Sequencomat, please see here.
Version: 3.1

Sequencomat triggers Ableton 8.1 in combination with Jazzmutant MU
(max4live, Ableton control surface)


demonstrating sync,
beatconstruction, recording midi (and  random pattern chains on an e-piano lick...); masterclock by Sequencomat.

Version: 3.1

SequencomatV3 triggering audio clips and sliced to midi beats in Ableton Live.

Triggering clips in Ableton is not the main focus of this sequencer, but it is possible via midirouting. Also effect on/off or everything you can route to a keyboard…

CCmodulation is done by the sequencer and feedback in MU via the m4l connection.

SequencomatV3 works great with MU, but also with any other DAW or even as standalone.

Version: 3.2

Here is a detailed setup guide for Sequencomat.

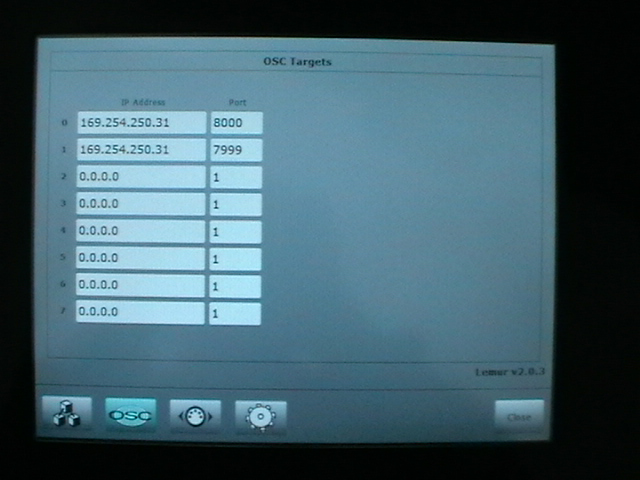

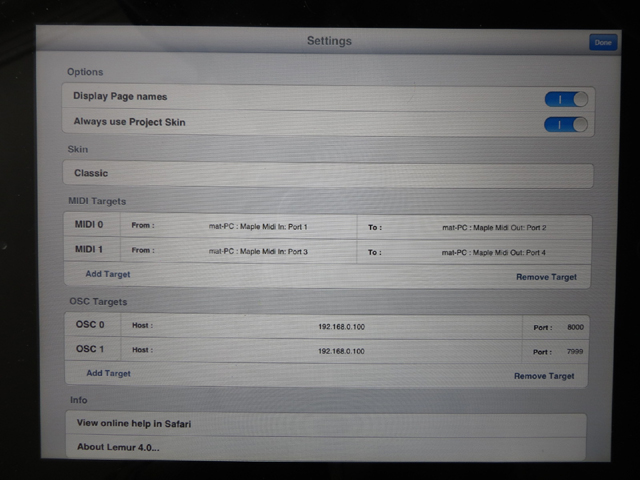

I talk about (and show!) the OSC-connection including where to find the IPs, the OSCports, the Midiports (virtual Midicables) and the settings and preferences in your DAW (here Ableton, but it might be equal in other DAWs)

The video is shot with the new v3.2, but it is also usefull for setup previous versions.
User videos (with more focus on music):
Version: 3.0

Here are 2 videos from Daniel Troberg
(elektron.se - founders of machinedrum)

He is testing the latest beta version and I asked him to make some videos demonstrating Sequencomat+hardware.

I really enjoyed what he came up with :)

In the first video Sequencomat V3 triggers a nord modular G1 on the first 4 channels and the G2 on the 4 following.



Version: 3.0

In the second video a real massiv modular system is triggered with Sequencomat.
wow (!)
lemur sends note data, modwheel data, midiclock.

Daniel is himself deep into stepsequencing while working on machinedrum. He enjoyed playing and said Sequencomat is a fantastic tool...

thanks for your support
_____________________________________
* Both videos show Sequencomat V3 as masterclock (run its own internal max clock) and triggering the hardware directly via midirouting. That means, although you can sync to any DAW (like Ableton, Logic, Protools), you not need to, to run this sequencer.

Version: 3.3

(full and lite parallel on 2 iPads)


Thomas Schmidt has made a user video showing the full version of Sequencomat and lite version running parallel on 2 iPads.

He is constucting some music live.

Version: 3.2


Felix da Funk has also made a user video showing the Sequencomat V3.2 in combination with Jazzmutants MU (a controller for Ableton live)

He is constucting some music live.

Version: 3.1

“Morton Noto” is a live performed ambient song on the Lemur, using my SequencomatV3 and Scalomat.

The song is inspired by the work of Morton Feldman, John Cage and Alva Noto. These names were dropped in talk with Paul Connolly (www.brightbluebeetle.com/), one of my customers, while talking about his perfect setup.

So I sit there on a sunday morning and listend to the work of these great artists… and was deeply impressed. After that I decided to put these fresh input into a song. Of course I wouldn´t mess up with these guys….it was just a source of inspiration.

Version: 3.1 (with additional user-control)

A remix of Schuberts “Ave Maria” by L’Oiseau Mecanique (LOM).

He is one of my Sequencomat users and made this for a demo video of my tool.
Beneath Sequencomat, Spectrasonics Stylus RMX was used. Therefore he expanded the functionbar of Sequencomat by 1 container (far right). This showing the flexibility of the Lemur and the templates…

The song is not finished and got more demo charakter showing the functions of the sequencer… but I love it! I host it for him as long as he got no homepage till now
You can get a free mp3 here.
Version: 3.0 (beta)

Live Stepsequencer Jam "Peppermind"

Another video in combination with Ableton 8.1 and Jazzmutant MU

demonstrating pattern, automatic pattern chains, grid jumps and more....masterclock by Sequencomat.

(Shot with a beta version, but I like the style, so I kept the video....)


Lemur template (based on V3.4)

This manual will guide you through all functions of Sequencomat v3. Please read it carefully to make the best out of your step sequencing experience.

Main screen:


  1. trackmute, muted tracks get darker
  2. de-mute all, press this switch to de-mute all track and steps at once
  3. stepmute, muted steps get darker
  4. switch for single/multiple editing
  5. trackchoice, selected track gets red
  6. control change LED (black = muted, grey-white = sending values)
  7. track LED (show if a tone is really played, based on propability; blue = play, black = not played)
  8. main stepmatrix
  9. exclude LED (marked tracks are excluded from pattern loading)
  10. range for stepvalue output
  11. stepvalues (here: velocity)
  12. step LED (stepstatus on selected track: black=no step, brown=step, not played (muting / propability), white=step)
  13. random switches (generates random values on selected steps)

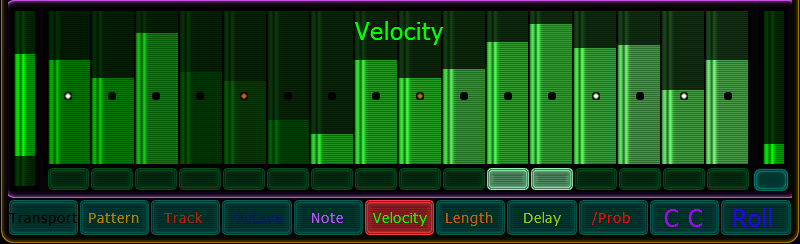

  14. slider to set all stepvalues at once
  15. function choice (change content of the purple container, 10 -14)
This sequencer is made for fast and direct editing many aspects of the sequence: You can switch (15) between different functions (here: velocity) while your main stepmatrix (8) still keeps visible. This allows you to delete or enter steps on tracks parallel with editing the stepvalues on one or more selected tracks.

Steps can be set any time at the main matrix. But to change stepvalues (e.g. velocity) a concrete track have to be selected with trackchoice (5). The selcted track will get red in the mainmatrix and stepvalues of this track will be displayed on the function. Active steps on the selected track are marked by the step LED (12). This way it could be seen very fast which values are to change. Step LED does not only reflect the steps set on the track, also if they are played at the moment. If the LED is white the step will be played. If the LED is brown, there is a step, but it is not played based on muting or propability function. Black LED means no step at all.

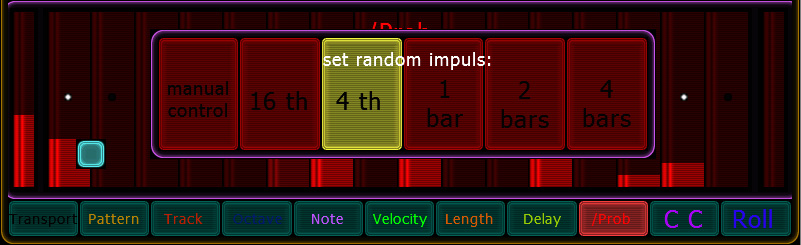

Track LEDs (7) reflect the steps propability status. If the step is played, the LED got the background color (here blue). If the step is not played based on propability it will get black. Steppropability can be set independent  for each step and track. This can cause a lot of visual feedback on tha mainmatrix, therefore the LED is hold in background color.

It is possible to edit the stepvalues of singel or multiple tracks. If the switch (4) is off, the trackchoice (5) is in radiomode. A Jump to a track will get automatic feedback on the Lemurfaders reflecting the stepvalues. If the switch (4) is on, you can choose as many tracks as you want (all will get red in the matrix) and edit the stepvalues of them all together.
However - in case that more than 1 track is selected, no visual feedback is given on the Lemur objects! The values might differ, so what should be displayed? (a reminder "multiple track editing - inaccurate feedback" is written accros the stepvalues) Whenever you variate a stepvalue object it is routed to all chosen tracks. The terminus "object" means, that e.g. changing 1 value of Slider within a MultiSlider will route all MultiSlider values to all selected tracks.

Trackmute (1) and stepmute (3) are located at the border of the interface. Muted tracks or steps will not be played (CC variation is not muted, but it can be muted within its function control) and therefore get darker in the main matrix. Muting works across patterns and is not part of patternvariation. With the de-mute all button (2) you can de mute all steps and tracks, which is usefull e.g. at the end of a break.

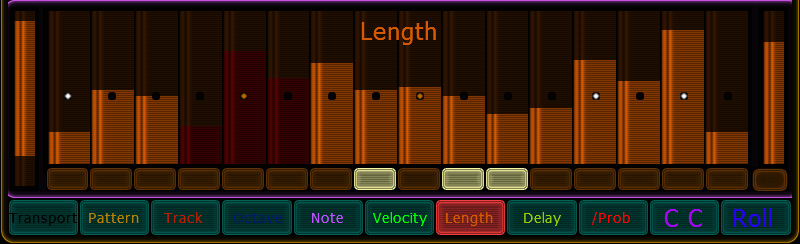

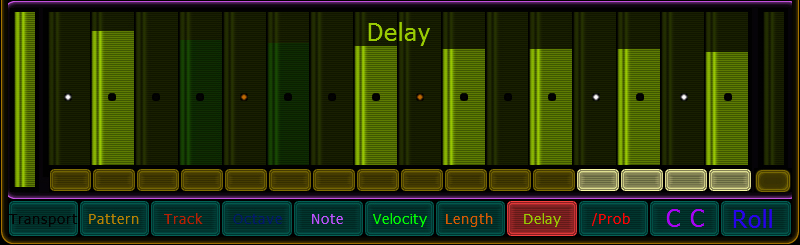

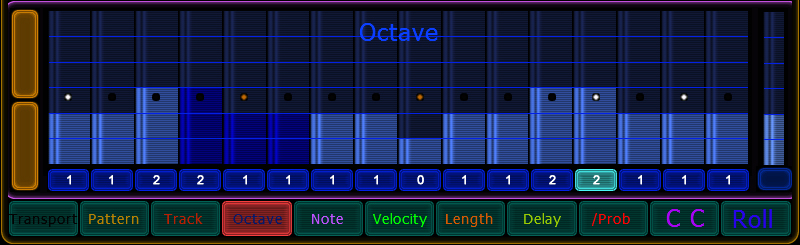

The different functions of Stepvalues will be described in detail within the next chapters. In common there is a slider on the right to set all stepvalues (14) and a range object on the left (10) which controls the minimum and maximum interpretation of the stepvalues (e.g. 45-75 instead of 0-127). That range concept is unique on that sequencer. It does not only give a higher precision for small value changes if the range is shrinked and therefore the faderway is now used for less values. It also allows to make later adjustments, like making a whole track louder, without changing each stepvalue and keeping the relative positions of stepvalues. To me it is one of the core points of Sequencomat. The random switches (13) are another unique feature. If activated they will create a new random stepvalue every time they are triggered. As these random values are interpreted within the range and can be activated stepwise, I like to call it a "controlled random". This combination of range and random brings the machine somehow to life....

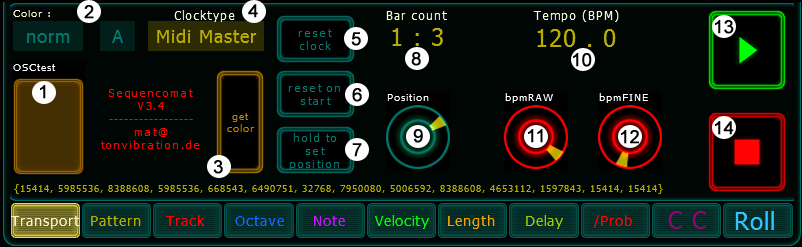

Transport:

transport section

  1. OSCtest button
  2. Colortemplates
  3. get color
  4. Midi clocktype
  5. reset clock
  6. reset on start
  7. hold to set position
  8. bar count
  9. position wheel
10. bpm monitor
11. bpm raw control (+/- 10 bpm each rotation)
12. bpm fine control (+/- 1 bpm each rotation)
13. start
14. stop

On the left side is a OSC-test button (1) for checking the Lemur<=>Max communication.
If Lemur => Max works you can remote a switch on the maxpatch and
if Max => Lemur also works that switch will turn on a light on the button.
So if both ways work you can turn the light on and off on the Lemurs test button.


With the dropdown menus for Colortemplates (2), all colors of Sequencomat can be changed. 20 colortemplates are predefined including 4 mainley grey colortemplates and 4 defineable userslots. Colortemplates do not affect the performance in any way - it is just eyecandy. For more information about colortemplates, please see here.


This sequencer has 3 different clock options (4) to synchronise with your other gear:

You can choose the clock mode on the Lemur (drop down menu) or on the maxpatch. To reset the clock manually (5) with a button any time. Also you can choose between "reset on start" or "continue" (6) from actual position when hitting start. Bar count (8) is reflected for each clock type.

Tempo
is controlled by 2 endless rotarys. While bpm raw (11)  changes bpm +/- 10
each rotation, bpm fine (12) adds +/- 1bpm . The actual tempo value is shown in a bpm monitor (10) above with one decimal place accuracy (e.g. "124.7"), default is 120 bpm. Play (13) and stop (14) is located on the far right. Play, stop and the bpm control does not work in "Midi Slave" mode, because they are controlled by the master.

The Position wheel (9) will turn when playing, set the resolution of the wheel on the maxpatch (default is 10 Quater notes per rotation).
If you press and hold the lowest button (7) you can turn the wheel (9) and the songposition will follow in quater note steps. This makes sense on some polyrhythmic patterns. If the clock is in rewire mode, your DAW will follow(!). If you are in Midi slave or master mode only the songposition of Sequencomat will change. If you use "reset on start" Sequencomat will jump to your selected position each time you press start, until you once press "reset clock" which will set it to 0 again. The spooling of songposition works during playback or if the sequencer is stopped. In case of playback the external clocksignal will continue and the songposition will catch the next quater note. During spooling the note-out is muted.

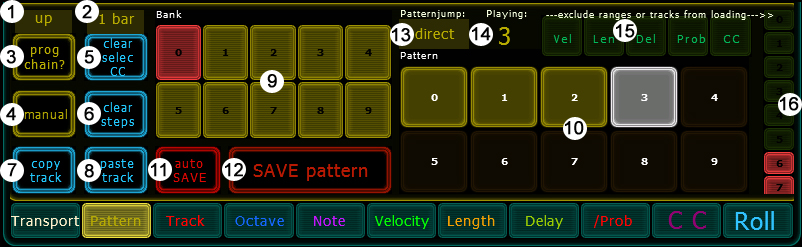

Pattern:

pattern section
   1. style of patternchaining (up - down - updown - random)
   2. timeline for patternchaining (1/4 bar - 1/2 bar - 1 bar - 2 bar - 4bar)
   3. program pattern chain
   4. activate pattern chain

   5. clear CCs on all selected tracks / "1 step back" in program chain mode
   6. clear steps, deactivate all steps in the matrix / "clear chain" in program chain mode
   7. copy track, copies the selected track (if more than 1 track is chosen it copies the lowest track)
   8.
paste track to all selected tracks
   9. patternbank with 10 slots
  10. patternslots (saved patternslots are highlighted, active pattern is white)
  11. autosave (if active, changes will be saved to actual pattern before selecting a new one)
  12. hold this button and press a patternslot (6) to save
  13. pattern jumping (direct - 1/2 bar - 1bar - 2 bars - 4bars)
  14. actual pattern number
  15.
exclude switches for range functions
  16. exclude switches for tracks (track 6 and 7 are excluded)

This sequencer got 100 patterns.
The patterns are sorted in 10 banks (9) with 10 patternslots (10) each. Changing a bank will update the highlighting of saved slots - so you see which slots already contain a pattern - but it does not trigger a pattern. For triggering a pattern press a patternslot (10). The actual pattern get highlighted and is also indicated in the monitor (14).

A pattern jump can be done immediately, if "direct" is selected on patternjump (13). That enables quick jumps between different variations, even within a beat, and pattern can be played like an instrument. Patternjumps can also be set to 1/2 bar, 1 bar, 2 bars or 4 bars, in that case patternjump is done with the next of these beat divisions. After triggering the next pattern to come will blink (with the rate of 8th).

To save a pattern press and hold save (12) while hitting one of the patternslots (10). The pattern is now saved to that slot and the slot will be highlighted. A saved pattern is always a snapshot of all actual values.
To erase a pattern (and its highlighting) press and hold clear steps (6) while picking the pattern slot.

If autosave (11) is active all changes will be saved automatically to the actual patternslot before a jump to a new pattern is initialised. It will delay the patternjump a few milliseconds.

Clear steps (6) clears all steps in the matrix. All other settings (midichannel, clock division etc.) stay the same. Tip: I suggest to use bank 9 for saving some empty default patterns with different Midichannels or timing. Clear CC (5) clears the CC on all chosen tracks. It resets stepvalues and range and mute the CC, midichannel and controller number will stay the same). In program chain mode both buttons (5+6) got another function.

Copy track (7) copies the chosen (red) track to a buffer. If more than 1 track is activated (multiple editing) it will copy the lowest track. Paste track (8) paste this before copied track into all chosen tracks.
During pattern construction copy/paste is really usefull. If you e.g. work on a beat and got a bassdrum on track 1, just copy it to track 2. All your trackvalues (like clock division, midichannel ect.) will be copied. To make it a snaredrum just change the note of track 2 and set some other trigger points in the matrix.... (double the BD-track while playing does not make any harm, even if both tracks trigger the same)


Beneath jumping manually through the patterns, Sequencomat can also do an automatic pattern chain (4).
In that mode the sequencer will automatically jump to another pattern after a special time.
To program a pattern chain activate chain prog (3).
The current chain will be displayed in a monitor across the mainmatrix and across the patternslots a message "cain programming" will appear. Add patterns to the chain by  picking the patternslots. If you want to add a pattern from another bank, change the bank first and then press the patternslot (like loading). During program chain mode "Clear steps" (6) and "clear CC" (5) get other functions and new labels: Clear steps (6) will clear the chain (delete the whole chain) and clear CC will erase the last step of the chain. During chain prog is active hitting the patternslots will not load the pattern but add them to the chain
Use the drop down menus to change style (1) and timing (2) of the patternchainThese can be changed independently from being in chain prog mode. Finally activate the chain with (4). Chain activation and chain programming are independent functions and you can programm a chain also during playback.
During an active chain a 2nd message across the main matrix appears, showing which pattern of the chain is actually played, what pattern it will be next and a countdown (based on 32th). Furthermote you can see the next pattern blinking in the patternslot (as long as you match the same bank).


With an active chain the sequencer jumps all values in the matrix according to the pattern. You can still change the triggers and other values, but all will be overwritten with the next pattern jump. This can be nice in a live situation where you only want slight variations of your predefined patterns.
If autosave (11) is active during a chain, all your changes will be saved to the pattern before the jump. This way you can edit live all patterns of the chain. However, you can only edit them whenever they are active. With jump to the next pattern you also edit next pattern.

You can exclude tracks (16) or ranges (15) from pattern jumping and loading at all. Excluded tracks will be indicated by some red LEDs on the mainmatrix between trackchoice and the track. This exclude function becomes usefull if you got a drumvariation on the first 4 tracks, jumping through different patterns, while you work on a baseline on track5 which you do not want to jump. You can also exclude the range functions of the stepvalues from loading. This is usefull if you want to make a fade in of velocity or CC across many patterns. Otherwise the ranges would jump to the saved values. "Exclude" works only for loading while save is always done to all you see.

Track values:

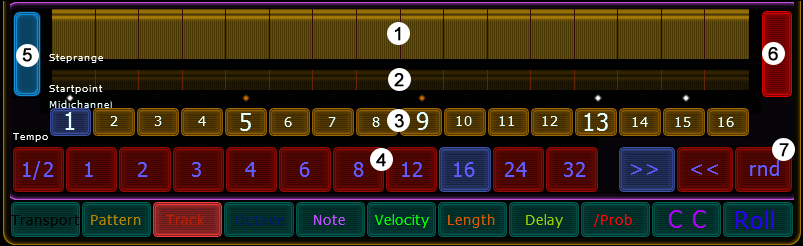

track values
  1. steprange (0-16)
  2. startpoint (0-16)
  3. midichannel (1-16)
  4. clock division (including triplet notes)
  5. reset steprange to 16
  6. lock steprange
  7. direction
Steprange (1) sets start and endpoint of used steps (stepranges less than 16 will allow polyrhythmic patterns).
Startpoint (2) skips the whole sequence to play some steps later (relative to the timing on track).
You can lock
(6) the size of the steprange and scrub the play position with one finger (even on multiple tracks) or
reset (5) to all 16 steps with one press (e.g. at the end of a break)

By changing the midichannel (3) you can trigger any hard- and software instrument of your set as long as it receives midi. In a DAW you can adress different instruments at to different midichannels, step through while listening
(without midihung!) The Midichannel of each track is saved within the pattern.

Clock division (5) changes the speed of playback a track, from very slow 2 steps per bar up to 32steps per bar, containing triplet grids. Direction (7) sets playback direction of the chosen track(s): foreward, backward or random.

Octave values:

octave values

Octaves can be set for each step on each track. You define the range for octaves on the maxpatch.
Just set the lowest octave (keyoctave) and then enter the other octaves relative to this devided by a space ("2" will mean 2 octaves higher then the keyoctave). The screenshot above shows a standard setup: 7 octaves, reaching from -1 to 5. You can enter as many octaves as you want. Also you do not need to set them in an ascending order (you can also set them "3 2 4 6 1") or you can use iterations of the same octave (which will define propability in random mode)
. The octaves and notes can be defined independently for track 1-4 and 5-8. This enables you e.g. to trigger drums on 4 tracks on a chromatic scale and notes on other 4 tracks on a special minor scale.

The grid of the Lemurs multislider will follow the number of octaves you have defined. That function is triggered by trackchoice, so if you change the octaves, reselect your track before changes are overtaken. The octave for each step will be displayed at the bottom row.

This bottom row are also the random-step-variation-switches. If activated for a step the octave will jump to a random value each time it is triggered. So you get a random variation on a stepvalue (here octave) each bar. On the bottom of the right side is a little switch, if turned on (and hold) all random switches are turned on,
if released all random switches go off.
These random-step-variation-switches you will find in many stepvalues.


To set all octave values of the track at once, use the slider on the right.
With the 2 pads on the left you can transpose all values up or down.

Tip: while using drum racks octave becomes handy to switch between different samples representing the same drumtype (e.g. if C is always a bassdrum in your drumrack, you can switch between different bassdrums)

Active steps on the track you are editing are highlighted on the LEDs - you always see what you are editing.
Here steps 1, 5, 9, 13 and 15 are set (track1 in the matrix). But step 5 and 9 will not be played and therefore get a brown LED. Step 5 is muted by stepmutin on the main matrix. Stepmuting is also reflected in darker multisliders (step 4,5,6) Step 9 is not played based on propability (as described below). Active steps are always white.
While playing the playposition is highlighted on the LEDs as well as on the value sliders (not shown in screenshot).
Any changing of steps in the mainmatrix will be reflected in the LEDs.

Note values:

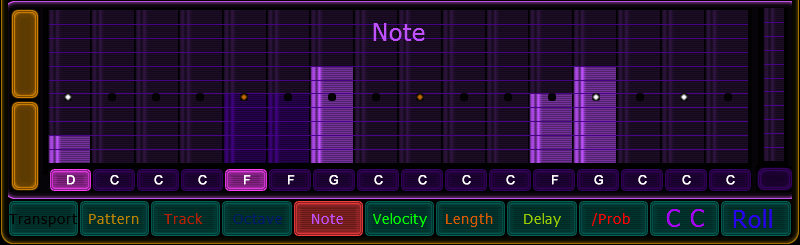

note values

Same as on octave, the notes can be set for each step on each track. You define your scales at the maxpatch (split between track 1-4 and 5-8). Just enter a keynote and the halftonesteps relative to this.
There are shortcuts for chromatic, major and minor scales, but you can enter any halftonesteps you want.
You do not need to enter them in an ascending order and you can use iterations of the same note in one scale.
This gives you the most possible freedom in defining them. All scales and octaves will be saved within a set.

The grid on the Lemurs multislider will follow the number of notes you have defined in your scale.
This function is triggered by trackchoice, so if you make any changes on the maxpatch, rechoice your track before you experience them.
The name of the note will be displayed at the bottom. These are also the random-step-variation-switches.
If pressed for a special step it will create a new random note (within the scale) each time it is triggered.
With iterations in your scale definition you can change the propability of a special note being played randomly.

To set all notes of the track at once use the slider on the right.
With the 2 pads on the left you can transpose all notes up or down within their scale.


Velocity:

velocity values

You can set the velocity of each step.
To set them all at once, use the slider on the right side.

The range object on the left sets the output (minimum and maximum) of all values.
That range concept enables you e.g. to fade in the volume of a track, while all relative velocity stepvalues still count. With multiple editing you can do that parallel on more than 1 track.

If you activate the random switches below the multislider, a random value is generated for that step each time it is triggered. Actually the new value is generated 50 msec after the triggering. So you might see already the new value,
while you hear the one from the loop before. (Thats a bit confusing from an ergonomic point of view, but was the best technical solution) You can manually overwrite the random value. Notice that random, as all stepvalues, only variates within the range. If you choose a small range you only have variation within that (0-127 might be to much for many random ideas).

Length values:

length values

Every step got it own length. In contrast to most classic stepsequencers (with discrete scales like 1/2 step, 1 step) you can set the steplength on a continious scale relative to the clock division on the track.
The maximum of steplength for all tracks can be set on the maxpatch (reaching from 1 to 16 steps).
By default it is 1 step. If you use longer steplength please keep in mind that the noteoff message of a previous (long) step can cause a noteoff on a later step that shares the same pitch and midichannel....

Again use the fader on the right side to set all stepvalues at once.

With the range (left) you can change the output of all values, making a track more pizzicato or more legato.
The random switches trigger a random value on selected steps as described above.

Delay values:

delay values

To create swing or groove on your pattern you can delay the triggering of each step on each track independently. The picture above shows a typical swing.
With the slider on the right you can set all stepvalues (if you want the whole track to be delayed) and with the
range on the left you can fade in the groove (also on multiple tracks(!), if chosen)

Tip: To route a delay pattern you have created on one track to all other tracks just choose this track first (so you see the delay pattern) then choose the other tracks (multiple editing) and give the sliders and the range a short variation. Now all values are you have variated are overtaken on all tracks you have chosen.

By default the maximum of delay on triggering is set to 50 msec, which is quite enough for a good groove,
but you can change that to whatever you want on the maxpatch. Try higher values (e.g. "2000") for a more experimental setting ;)

You can also humanize your groove by activating the random-step-value-switches.
The delay on triggering is also reflected in the steplights, giving you a visual impression of the groove.

Propability values:

Propability values

Since Version 3.2 Sequencomat has a propability function on each step. That brings more variation into the pattern and enables that a special step is not played every loop, but only in e.g. 50%. It is propability as that does not mean every 2nd loop, just in 50% of the cases.

Well, actually the terminus "unlikeliness"
would be more clear for that function, because the higher the stepvalues are, the more unlikely it is, that the step will really be played (thats why it is named "/prob" - inverse propability)

The left slider gives feedback and also controls the random value, to compare the steps with:
Steps higher than this value will not be played (here 9 and 12), all steps below will be played.

Iniciate a random impulse by pressing and hold the small brown button on the left.
A container will pop up a seen below:

Propability setup

You can generat a random value (to compare with propability) on 16th, 4th, each bar, 2 or 4 bars. Random impulses are only given while the sequencer is playing. This settings will be saved within the patterns and are independent on each track!
You can also manually control the value to compare the propability with. So you can fade in the "density"
(more or less notes) of one or multiple chosen tracks.

The "Unlikeliness" - or the question if a tone is played or not - is also shown on track LEDs above the track switches.
-blue (background) LED means "tone will be played" (if it is set)
-black LED means "tone will not be played at the moment" based on propability.

As you can imagine, that can be a big blinking and visual load with all the steps on/off variation on each track...
But if you use propability only sparely (only on some steps), it will blink less ;)

Anyway, to keep it realistic, I suggest a random impuls on 4th not on 16th.
A slower impulse rate (2 or 4 bars) enables to play the same variation several times before changing.

Control Change values:

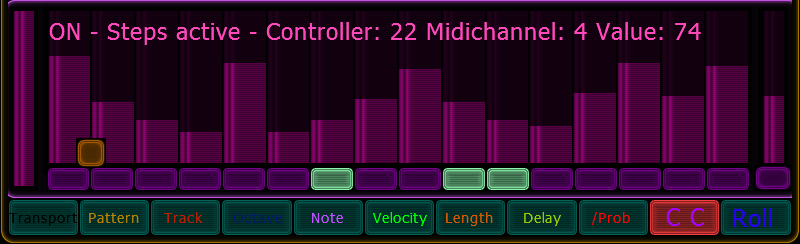

Control Change values

Additional to all note information, you can also set a control change variation for each step on each track.
Midi-control-change (CC) messages can be routed to anything in your DAW or external gear, like pan, filter, effect values, whatever.  The timing and steprange of the CC variation is bounded to the trackvalues,but Controllernumber and Midichannel of the variation is free to edit and saved within the pattern!
Since version 3.4  program change on the selected channel is sent by controller number 129. This enables to switch between sounds, even stepwise. For multiple tracks, use the highest track for program change to make sure the jump comes in time. Controlling 127 sounds with the short MultiSlider is not the best ergonomic way... but shrinking the range for stepvalues help a lot to get more detailed control.

Again you can set the value for each step, set all step with the slider on the right, use the range for the output on the left, and set steps to random variation with the switches below.

To set Controllernumber and Midichannel press and hold the small brown pad on lower left side.

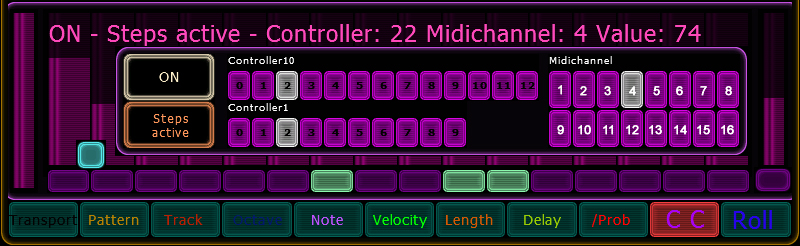

A container will pop up as shown on the image below:


Control Change setup

You can activate or mute the CC variation with top button on the left. If you do not use the CC on that track in a pattern it might be usefull to mute it, so it does not send out any information accidentally. If a CC is muted the LEDs inside the trackmute buttons on the mainmatrix will get black, indicating you that no CC is send.

With the mode-button below you can activate the steps (as shown in the picture) or deactivate the step variation
and set to "range only". In that case only the middle position of the range is send. You can use it as fader or set the value for a special pattern.

With the 2 radioswitch rows in the middle you can set the controller number and with the radioswitch on the right the midichannel. This is working for one ore more selected tracks  (e.g. if you want to set the channel of several tracks to 10). All values will be displayed in the textbox written across the multisliders, so you always have an overview about the CC status.

The routing is also saved within the pattern. That means, while track1 CCs control e.g. the pan of a piano in one pattern, it can control the filter of a synth in the next. However, with that freedom some confusion naturally can come in, so I suggest to keep the same controls on the same tracks.

As long as you hold the little brown setup-button (that now turns blue) and see the setup, control change variation is interrupted and nothing will be send! (to avoid accidentally CCout while changing the setup)

For midi-mapping the range object on the left is also handy: To control a certain function of your DAW, stop the sequencer (otherwise it would send to much info to map) go to your midimapping, choose a function and move the range (e.g. ableton automap)


XYpad:

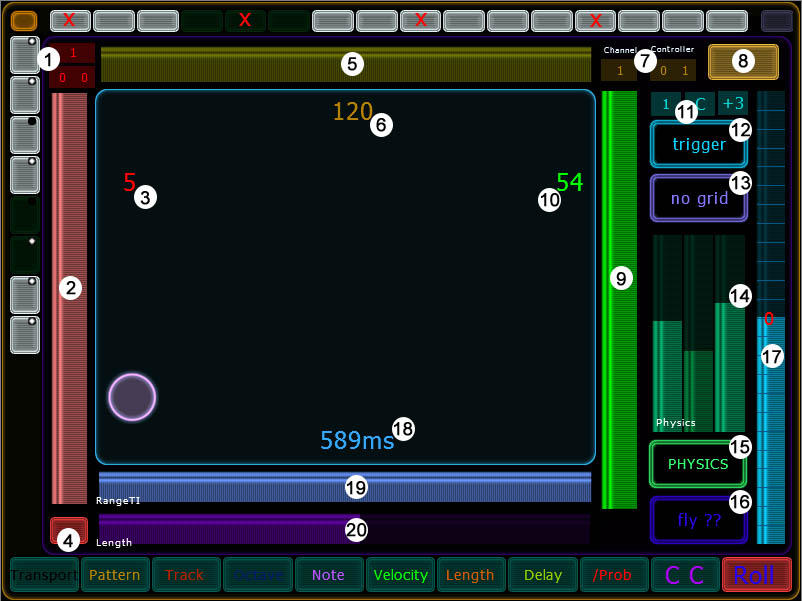

XYpad
  1. drop down menu for midichannel and controllernumber on vertical axis
  2. range for cc output on vertical axis
  3. monitor cc output on vertical axis
  4. mute vertical axis
  5. range for cc output on horizontal axis
  6. monitor cc output on horizontal axis
  7. drop down menu for midichannel and controllernumber on horizontal axis
  8. mute horizontal axis
  9. range for velocity while triggering
  10. monitor for velocity
  11. midichannel, note and octave of the triggered tone
  12. mode: CConly / trigger
  13. no grid / synchronise the triggering
  14. physics of the ball: attraction - friction - speed
  15. physics on/off
  16. fly (sets friction to 0 and let the ball fly)
  17. transpose (added to note and octave)
  18. monitor of trigger time
  19. range for trigger time
  20. length of the triggered note
The XYpad has 2 modes (12):

In "CConly" mode you control 2 different CCs on the pad.
CCs can be manipulated within a range (5 / 9) and each axis can be muted separetly (4 / 8). Set the midichannel and controller number with drop down menus (1 /  7)

In "trigger" mode an additional note is triggered as soon as you touch the pad. That trigger mode allows you to make rolls and flames and also play melodies... Set midichannel, note and octave of the trigger note with drop down menus (11). You can also transpose (17) the pitch. The pitch will follow the scale of track 1-4 defined on the maxpatch. The speed of the triggering is controlled on the horizontal axis and the velocity on the vertical axis. Both with a range for the output (19 / 9). The minimum time of triggering is 40msec. The length of the trigger note is set with the purple slider on the bottom (20) and is always relativ to the triggertime (balls horizontal position), e.g. half slider means 50%.

If sync (13) is active a grid appears on the horizontal axis (no screenshot here, but you can see in the videos),
enable you to make rolls in sync with the sequencers clock division (2, 3, 4, 6, 8, 12, 16, 24, 32)

While triggering a note, the CCs can send parallel or you can mute them.

Unlike all other functions, the rollpad is independent from the pattern section and not saved within a pattern.
It is more a performance space, so I do not want to jump e.g. during an automatic pattern chain....
But it is saved within a "set" and will restore your values within next load of the set you use.


The settings on the lemur


Version: 3.2

Here is a detailed setup guide for Sequencomat.

I talk about (and show!) the OSC-connection including where to find the IPs, the OSCports, the Midiports (virtual Midicables) and the settings and preferences in your DAW (here Ableton, but it might be equal in other DAWs)

The video is shot with the v3.2, but it is also usefull for setup of other versions.

Insert module into a lemur project

Sequencomat is a module that can be insert into any lemur project. Therefore open the Lemur editor on your computer and connect to your Lemur. You can start a new project or load an existing project and add a new blank interface. Insert one of the „Sequencomat_v34....jzlib“ into this. They differ between iPad or legacy resolution.

insert into Lemur

You can name the interface (here: „Default“) how ever you want. But the name of the modules container should always be „SequencomatV3“. It is mentioned in the pathway of the maxpatch and communication will not work, if that name differs.

You can only use 1 Sequencomat within one project. Entering more sequencomat modules into the project will automatically change the container name and therefore corrupt communication. However – you can combine full and lite version of Sequencomat, because lite versions name is „SequencomatV3l“.


OSC settings on the Lemur


The lemur objects within this sequencer use OSC target 1 to send information to max.
Therefore you have to define target 1 on the Lemur:
OSC targets on Jazzmutant Lemur

OSC settings on iPad

The IP adresses of target 0 (as used in with other modules) and target 1 can be the same. Actually they will be the same as long as you targeting the same computer. You can find your computer IP on your computer network settings or have a look at "Lemur connected to" in the Lemur settings, if your editor is connected (for loading templates).

The ports of both targets should be different if you want to use both OSC targets in one setup. (It doesn´t matter if you do not use both targets at the same time) To avoid conflicts with the standard port 8000, e.g. in combination with MU (which uses 8000 on target 0 by default) you can use port 7999 for OSC target 1 (=the sequencer) as I have done here.

The maxpatch

The heart of the sequencer and all the calculation is done in cycling 74s max5. The lemur is just the control surface.
To run SequencomatV3 you need either max or free max runtime. The patch is normal max, not in Abletons "max for live". Normal maxpatches and max4live patches will run parallel.

Put the maxpatch in a blank folder. (It will also save all sets to this folder.) Before opening the patch load the module to the lemur and start your DAW (especially if using rewire).
You can open max runtime and then load the patch or you can link the patch directly to your desktop e.g. using the desktop icons attached in the zip. In case you link it directly you can open the maxwindow by pressing Cntrl+M. The maxwindow will show some usefull information.

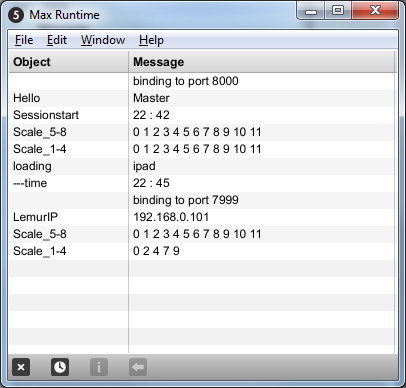

maxwindow starting Sequencomat v34

At start it binds to port 8000 and says hello to the user. It also gives a timestamp and confirms the Scales (cromatic by default) for track 1-4 and 5-8. Notice that the Scalefeedback is given in contrary order to appearance in maxpatch (5-8 at top?), this is based on the inner triggering of the patch. It is confusing and should be mentioned here, but it does not effect performance ;)

Maxwindow will also confirm loading or saving a set with timestamp, changes of port, LemurIP and scales.

While running the patch for the first time, you have to enter some settings.
But no worries, this will be saved within the set, so you do not have to do this every time.....


Sequencomat v34 maxpatch


communication:

First we have to establish a OSC communication between max and the lemur.
If you have defined your OSC target 1 on the lemur (see above) one part is already done.
Now fill in your Lemur IP on the maxpatch (you will find this IP in the mainsettings on the lemur, use it with static IP!)
and the port you use for OSCtarget 1 on the Lemur (standard is 8000, here I use 7999 as described above).

You can test the 2-way OSC communication with a OSC-test button on the Lemur, nested inside the transport container. If you press it, the OSC-test button on the maxpatch should blink and the switch should alter between on and off. This represents "from lemur to max" communication. If the switch on the maxpatch is on, the OSC-testbutton on the Lemur should light up. You can test it, by clicking with the mouse. This represents "from max to lemur" communication. If both ways work, you can switch with
the light on the lemur button on and off.

Next choose the midiports, where the sequencer sends the notes and CC variation to. You can split the midiports for track 1-4 and 5-8 (which makes sense on some hardware configurations), but both ports can also be the same. The drop down menu on "Midiport receiving notes" will show up all mididrivers you have installed on your system. Choose one of them (here: "LoopBe Internal MIDI").

On PC you can use LoopBe or Midiyoke. (Maple Midi seems to be a little bugy in max while using win7.)
On Mac, please use the IAC drivers. Do not use the jazzdemon ports, because they are for Lemur exclusively!
Remember that Midiport, because we have to activate it in your DAW settings later.

clock type:

This sequencer can be synchronised via 3 different clock types. You can choose the clocktype on the maxpatch or on the Lemur.
You can add a linear delay to the internal or external clock signal. That will help if you got a time shift of the trigger signal. However, it only works to delay the clock signal, not to anticipate it. If you use for instance the Midimaster of Sequencomat and route your DAW to it, it is properly that you experience the Midinotes from the Sequencer being a little late. In that case delay the external clock signal until both fit (in my case 27msec work fine, but it might depend on your setup)

You can also change the resolution of the position wheel. By default it is 10 quater notes per rotation.

On the right side of the maxpatch you also find some entries to control clock directly. "Reset on start" resets the clock to 0, every time start is pressed. It is linked to a button in the transport section of the Lemur template, so it is kind of double control. "Manual reset" sets the clock to 0 during playback. "stop clock" sends a stop into the sequencer (new in v3.4, only in case wireless connection to iPad drops and sequencer to stop).

scales:

Scales can be defined for track 1-4 and track 5-8 independently
. By default they both use chromatic scales based on C and 7 Octaves based on -1. There are shortcuts for some common content, but you can set the halftonesteps and octave rows to whatever you want. For scales choose a keynote and enter the halftonesteps based on that (including 0 for the keynote), divided by space. "0 2 4 5 7 9 11" for example is a major scale. You do not need to keep an ascending order, can use halftonesteps greater than 12 and can also use iteration of the same halftonestep (which will lead to the same note being triggered in different positions of the multislider). You are completely free to define whatever you need!
The grid on the Lemurs note-multislider will follow the number of halftonesteps you have defined
(maximum is 32... which is a bit unhandy anyway). The changes you do on the maxpatch are triggered by trackchoice on the Lemurtemplate. So rechoice first before you see any changes.
If you change a scale all existing patterns will be interpreted based on that halftonesteps now. (In other words - it does not remember the notes, but the position within a scale. This enables you to change a whole set from e.g. F minor to D major)

Octaves follow the same principles as notes: Define a keyoctave and set all steps relative to it.... e.g. "0 1 2 3 4 5 6" on keyoctave -1 will mean 7 octaves in ascending order from -1 to +5. Like on scales you are free to define the order of ecperience

Scales and octaves are part of your set and saved within. They are not part of patterns.

settings:

Although you control the sequencer on your Lemur, it has some preferences you can set at the maxpatch.
(*) This time is needed to flush (erase) all midinotes that are currently played on one track before a midi-channel jump is fullfilled. It prevents from hung midi notes, because all notes on this track get a noteoff-message before the channel is changed. load and save:

You can save all your patterns
of a session and the settings of the maxpatch in a set. Therefore stop the sequencer first and use the save button. A dialog will appear, where you enter the name of the set. After "ok" the maxpatch will write 9 files into that folder where it is installed: 1 file for each track and 1 file for the settings. Therefore - use an extra folder for the Sequencomat maxpatch!
You can load sets with the load button and entering the name of the set (**). It will load all pattern and settings, including your LemurIP and clock setup. The load default button loads directly a set named "default". This is not predefined, but you can save any set as "default" for having a quick start.
(**) There is no file browser, so you have to know the name of the set, just name it like your song...

The preferences in your DAW

In your DAW (digital audio workstation) you have to open some "in"s to receive the data from the patch.
The screenshot shows the preferences in Ableton Live 8

live preferences

Please activate the "track" and "remote" input for that midiport you have chosen on the maxpatch ("midiport receiving notes"), here "LoopBe Internal MIDI".

In that screenshot a "sync" input is also activated (in the middle). This is only needed if you use SequencomatV3
as master clock and want to sync Ableton to it. If so, you have to activate the "EXT" button in Ableton, which will appear in the upper left corner of Ableton, as soon as you have opened a "sync" in.

For using rewire clock you do not have to activate any sync out.

For using midi slave, activate a sync output on a port, (but never use the same port for clock in and out!!!!)
and choose that port on "receiving clock from" at the maxpatch.

The track settings in Ableton

live channel

On the tracks in Ableton select that Midiport at "MIDI from" you have chosen on the maxpatch (here: LoopBe) and enter a Midichannel for each instrument. With Midichannel routing you can adress up to 16 different instruments with SequencomatV3. All channels will be saved within the patterns (so one can be a drumpattern, while the other is routed to a piano) and you can combine different instruments in one pattern with independent midichannels on each track.

To hear any notes played by the sequencer activate "in" at the monitor (the channel becomes orange, see channel 1) or activate record (with "auto" on the monitor, see cannel 2 and 3). To record parallel on more than 1 channel, you have to deactivate "exclusiv" for "arm" in the preferences.

Time accuracy:

One important thing on a sequencer is a stable and reliable clock.
During Midi synchronisation there might appear 2 problem relating the clock: instability and time shift.

Instability
means a variation in triggering (like some triggers come a little early, some a little late). On humans this is natural, but you wouldn´t expect that from a machine. While working with DAWs, we are used to 100% exact timing.
Anyway, a midiclock is never 100% stable. This might be due to the data resolution of the midiprotocol, some hardware configuration or CPU processes, if the clock is hosted by a computer. So you try to get the most stable clock, but have to be lucky with 99,8% stablity. This problem is normal with all midi synchronisations, including hardware stepsequencers, but can be unknown for musicans who worked only within their DAW till now (therefore i mentioned it here).

Time shift means a linear delay on the triggering. Although this effect might be bigger in amount, it is not so critical, because you can correct it via "midi-clock-sync-delay".

During constuction of this sequencer, one focus layed within time accuracy.
To integrate 3 clock types, was to get the best out of it with any setup.
The next section will show some screenshots with different clocks and time corrections (done with V3.0):

Sequencomat as rewire slave:

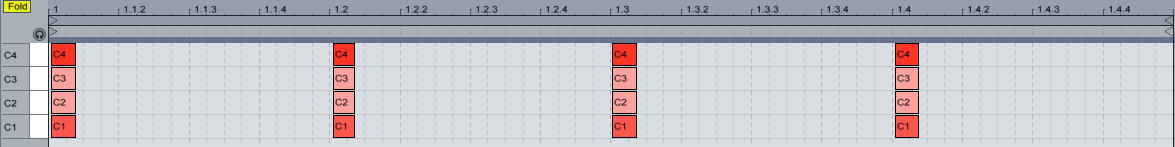

Using the rewireclock:
uncorrected rewireclock


With a rewire clock both problems appear: there is a little timeshift and there is a slight instability, as can be seen by comparing 1.2 and 1.3. Both problems are not big in amount (the grid in the background is 64th!)

Unfortunately it seems not possible to give the rewire clock a time correction in Ableton Live.
You can use "quantisize during recodring" to solve the instability on recorded clips. Or you can use "track delay" at the bottom of a track to compensate the linear time shift on recorded tracks.
But during live sequencing you might have this effect on timing.

Anyway, try it. The effect is not so big and the rewire clock got some other possitive aspects:
- it is easy to use and doesn´t need any sync out
- the sequencer will follow the songposition.
That means,a jump to bar 23 in your rewire master (ableton, logic, cubase...) will cause the sequencer
to follow that jump and all polyrhythmic patterns (<16steps) will play the values they would have played, if you have started from 0 and are now on bar 23...

Sequencomat as midi slave

(1) Using the masterclock from Ableton and Sequencomat as midi slave without time correction:
uncorrected slaveclock


(2) Using the masterclock from Ableton and Sequencomat as midi slave with a time correction of -12msec:
corrected slaveclock


(3) Output clock settings in ableton :
slaveclock settings


While using Ableton as master and SequencomatV3 as midi slave the time shift becomes bigger, as shown in picture (1).
You can correct this linear time shift with the output clock settings (3) which results in an accurate triggering (2).
Note that the stability (variation between triggers) is better than in rewire-slave mode.

Sequencomat as midi master

(1) Using the masterclock from Sequencomat without time-correction:
uncorrected masterclock

(2) Using the masterclock from Sequencomat with time-correction of -27msec:

corrected masterclock

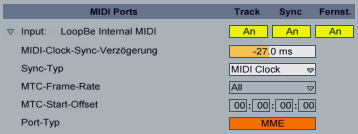

(3) Input clock settings in Ableton:
screen masterclock settings

Using the internal clock of SequencomatV3 as master and Ableton in slave mode results in a large timeshift (1).
But with a time correction of -27msec on clock input (3) this clock-type got a very accurate and stable triggering (2).
You will notice some value jumping on the bpm monitor in Ableton while using this clock, but that does not affect accuracy.

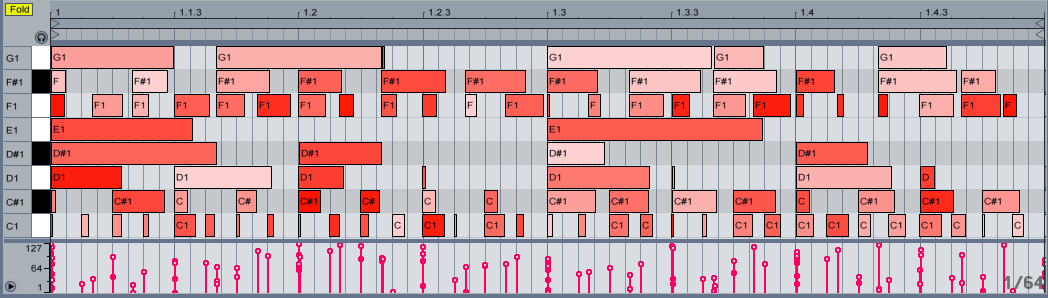

Timing test with version 3.3

Below you see a screenshot of a timing test using the Master clock of Sequencomat in actual version 3.3 and slaving Ableton 8.1 to this.

8 tracks, each running on different grid (F, F# and G on triplet grids!), with random step-velocity and step-length on all steps, recorded at 120 bpm.
For linear time correction the function "external clock delay"
(on Sequencomat V3.3) was set to 27 msec, while time corrections in the DAW were all turned to 0.


v3.3 timing test

And as you see - even with heavy load - the clock stays stable.There is only some slight inaccuarcy if you watch D# at 1.2 or D at 1.2.3. However, the grid in the background (64th) represents timing blocks of 31,25 msec, so the inaccuracy is about +/-1 msec. This is really good for a Midiclock, and you will hardly find another Midiclock doing the job better ;)

Which clock should I use?

This depends on your setup and you are free to choose.

You can change the clock with a button on the Lemur or on the maxpatch and even jump during playback,
but for a accurate timing I would suggest to stop one time and press play again.

I got the best results with the Sequencomat as master clock and a time correction of -27msec.
Same while running in combination with Jazzmutant-MU - I had best results with this setup.

You can also use this sequencer as a "standalone", directly routing midi to your synths.
(as Daniel demonstrated in his videos)

While testing clock configurations keep in mind:
Do not use the same midiport for in and out, this might cause a midifeedbackloop.
Although you have seen that I use LoopBe in both cases, I always deactivated the other option before!

Change log

As this sequencer got an ongoing development process, the version and functions change:

Version release date
3.0 05-10
3.1 - added "random" to playback direction
3.2 09-10 completely reworked the maxpatch
- split of midiports (track1-4 / 5-8)
- steppropability including track LED indicators
- added 8CCs attached to track
- cutted breakpoint object for CC from previous version
- random function for stepvalues on velocity, length, CC
- rollpad values are now saved within the set
3.3 03-11 completely reworked the maxpatch
- free definable scales and octaves (split between track1-4 / 5-8)
- true and scale-dependent transpose for octave and range
- random-step-value switches for octave, note, delay
- autosave function
- exclude-range-function for loading on velocity, length, delay, propability, CC
- linear clock signal correction (in and out) on maxpatch
- position wheel with set songposition function
- CC parameter choice and display
- dislocated some variables to max to cut down lemur memory
3.3 colors 06-11 uses same maxpatch as v3.3
- new Lemurtemplate with color shades for control objects
V3_lite 09-11
12-11 Liine released the Lemur emulation for iPad
01-12 converted v3.3 and v3lite to iPad
3.4 02-13 ...after nearly 2 years one more update for Sequencomat v3:
enhanced the maxpatch, but kept compatible with 3.3
- program change transmitted stepwise via CC on controller 129
- reworked pattern chaining (free programable now)
- added function for patternjump (direct - 1/2 bar - 1 bar - 2 bars - 4 bars)
- next pattern blinks
- saved patternslots are highlighted
- 20 color shades including grey and 4 usercolors
- shortcut for 15 scales

Sets of versions 3.0 -3.3 of this sequencer are not compatible, so keep them in different folders. Sets of version 3.3 and 3.4 are compatible, but will miss the vector "patlight", which highlights saved pattern slots. To build this vector save patterns again in same slot and save the set
using v3.4.

You can combine SequencomatV3 with any other Lemur modules (it is a module, not a project file), like synth controlls or the max4live Ableton control surface MU. (Although you might see many videos in combination with MU, the sequencer works with any DAW or even without)


FAQ:

I never worked with Max/Msp, is it very complicated to get Sequencomat running?

No. As a user you just have to fill in some values during first setup (Lemur IP,OSC targets).
I made a detailed setup guide and if you got any question you can ask me anytime.


I use Max/Msp on my own, is it possible to edit the patch?


Yes. My patches are open and some parts are even commented.
So it might be a good link to improve your own Max-skills.

However, if you use parts of my Sequencomat-patch in your own patch,
you have to
contact me first before sharing it with others.
(as long as you only use it for your own it is no problem)

I do hold the copyright on SequencomatV3.
Please respect my developing effort :)


Why is the patch done in Max and not in max4live?

Although my main DAW is Ableton Live and I own also a copy of m4l, I have done
the patch in normal Max for a bunch of reasons:
-  compatibility with any DAW or working even without a DAW
-  free runtime in Max, so no further cost for customers
-  restrictions in m4l (no midichannel !)
But as said: it works parallel with m4l and templates like MU


Can I change the colors on the Lemur?

SequencomatV3 contains some colorscripting, which is all done on the Lemur (not in max).
For more information about colortemplates, please see here.
You can also change size and shape of the control items. (Hey, it is a LEMUR!)
So if you e.g. want the mute and trackchoice switches to change sides, just do it!
But please never change the name of objects, delete them, or put them into other containers.



I like the patch, but I will need some changes to fit to my personal setup. How can I do that?

You can try to expand the template on your own or you can send me a mail. I do no more custom interfaces, but maybe I can have a look at your wish with next update or give you a tip how to handle the problem.


Nice patch, but the price is insane.....!

99,- Euro might look as much money. But if you keep the plenty of functions in mind, you might understand.
SequencomatV3 adds the functionalitiy of hardwaresequencers to your Lemur.
These hardwaresequencers cost about 10 times as much.

Until my initiative to sell sequencers on a broad basis, stepsequencers on the Lemur were custom made
for a much higher price, or some free downloads with very restricted functions.
I had the idea to open a market and make prices more affordable, so more musicans can enjoy
touchscreen stepsequencing.
Just try the
free demo version.


Ha ha...., I have seen SequencomatV3 on torrent bit, so why should I pay?

Actually "SequencomatV3" appears on some torrent bit servers......
However, all I have downloaded till now are fakes. Some of them even contain bad virus.
Those piracy companies - who distribute my stolen software...or more concrete: who fake that they distribute my software - furthermore want to to be paid for their "service".  So you will pay for getting nothing than some new virus.
However, if you know a link on a torrent bit that works, please contact me!
No worries, downloading is not illegal - you will get no trouble from my side....more some big hugs!
For those who maybe plan to upload and share the patch, be aware that every patch has a secret code that identifies the original user. Sharing with out my permission is illegal and will be prosecuted. (Sorry, but I have to mention that here)


Where is the difference between all that versions of Sequencomat?

I name all my stepsequencer SEQUENCOMAT. I like the name because it reflects the typically „Automat“ ending in german languange and also drops „sequence“....and furthermore my shortname is „mat“.
The versions are according to their release date. With each change of version I had to do some major changes in the framework. In V3 I did a big jump while porting all value calcualtion and handling into max. Each version got some updates in following number. In common the higher the version the more details you can control.

v1 v2 v3 lite v3 full
clock rewire rewire
midimaster
midislave
rewire
midimaster
midislave
rewire
midimaster
midislave
swing - - global trackwise
tracks 8 8 6 8
patterns 16 16 50 100
global values midichannel
grid
playdirection
steprange
startpoint



trackvalues pitch
velocity
length
random
midichannel
grid
playdirection
steprange
startpoint
pitch
velocity
length
random
midichannel
grid
playdirection
steprange
startpoint
random
midichannel
grid
playdirection
steprange
startpoint
random
stepvalues steps steps steps
pitch
velocity
length

steps
pitch
velocity
length
delay
propability
controlchange
program change
+ random for all stepvalues
avialable legacy / iPad legacy (discontinued) legacy / iPad legacy / iPad
release date sept2009 nov2009 sept2011 may2010
last update
march2012
iPad re-release
march2012
V2.5
march2010
dec2011 V3.4
february2013
manual online online online (you read it)

See a video comparison between SequencomatV1 and SequencomatV3.1 here: http://www.youtube.com/watch?v=v4pdzmYzrxQ (shot with legacy version august 2010)


Happy sequencing

mat


contact: mat@music-interface.com
